Roland VersaUV LEJ-640-S B150

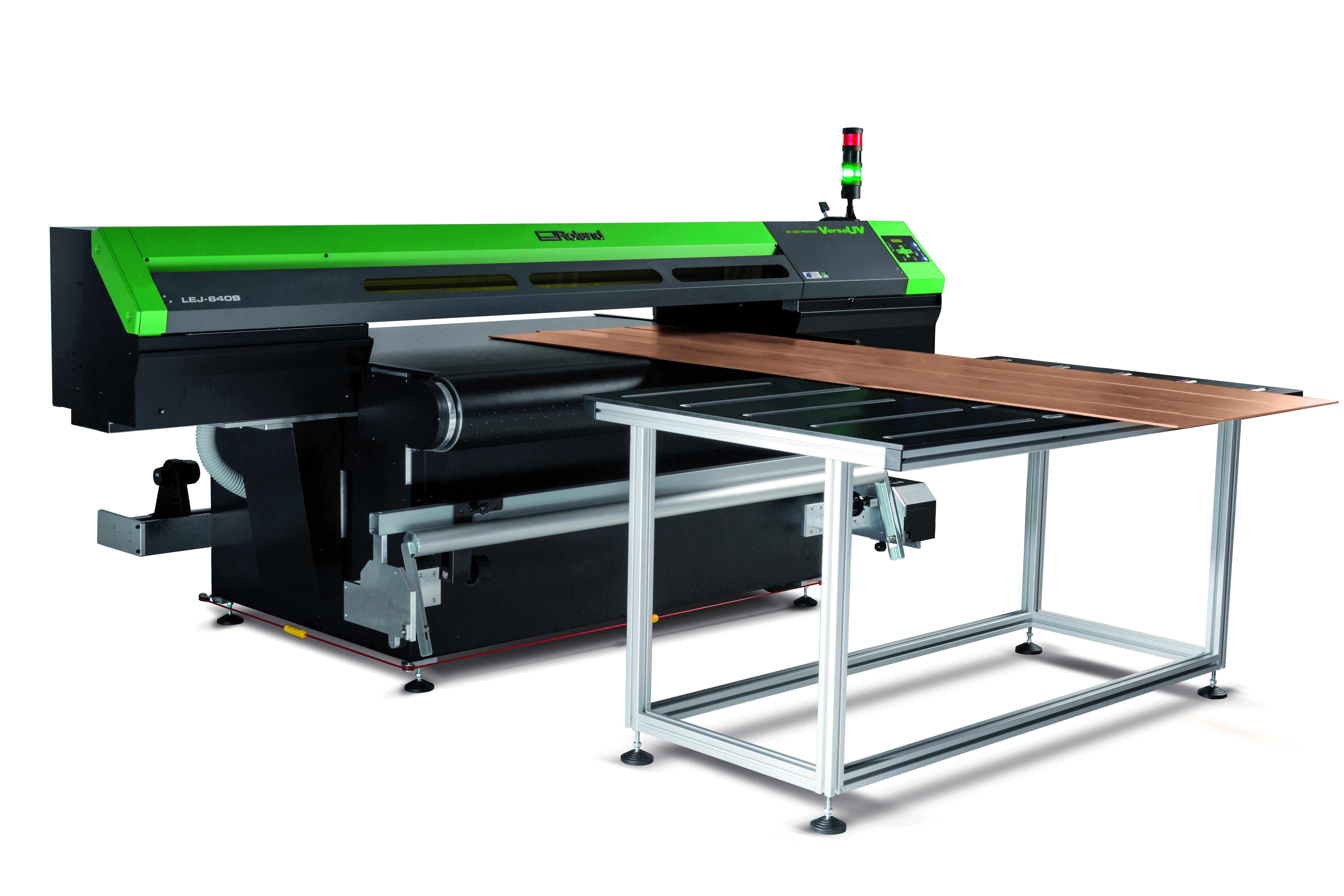

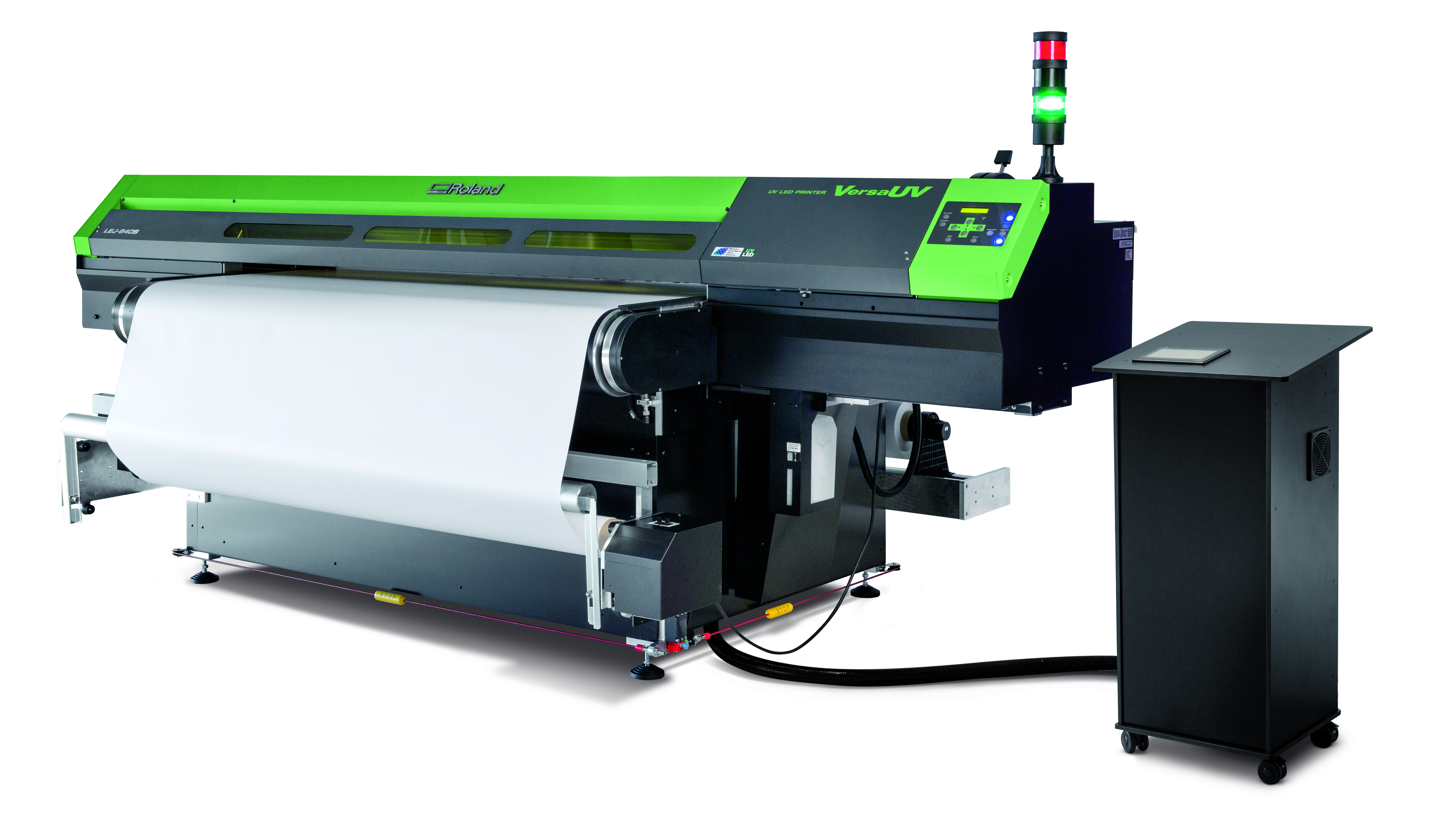

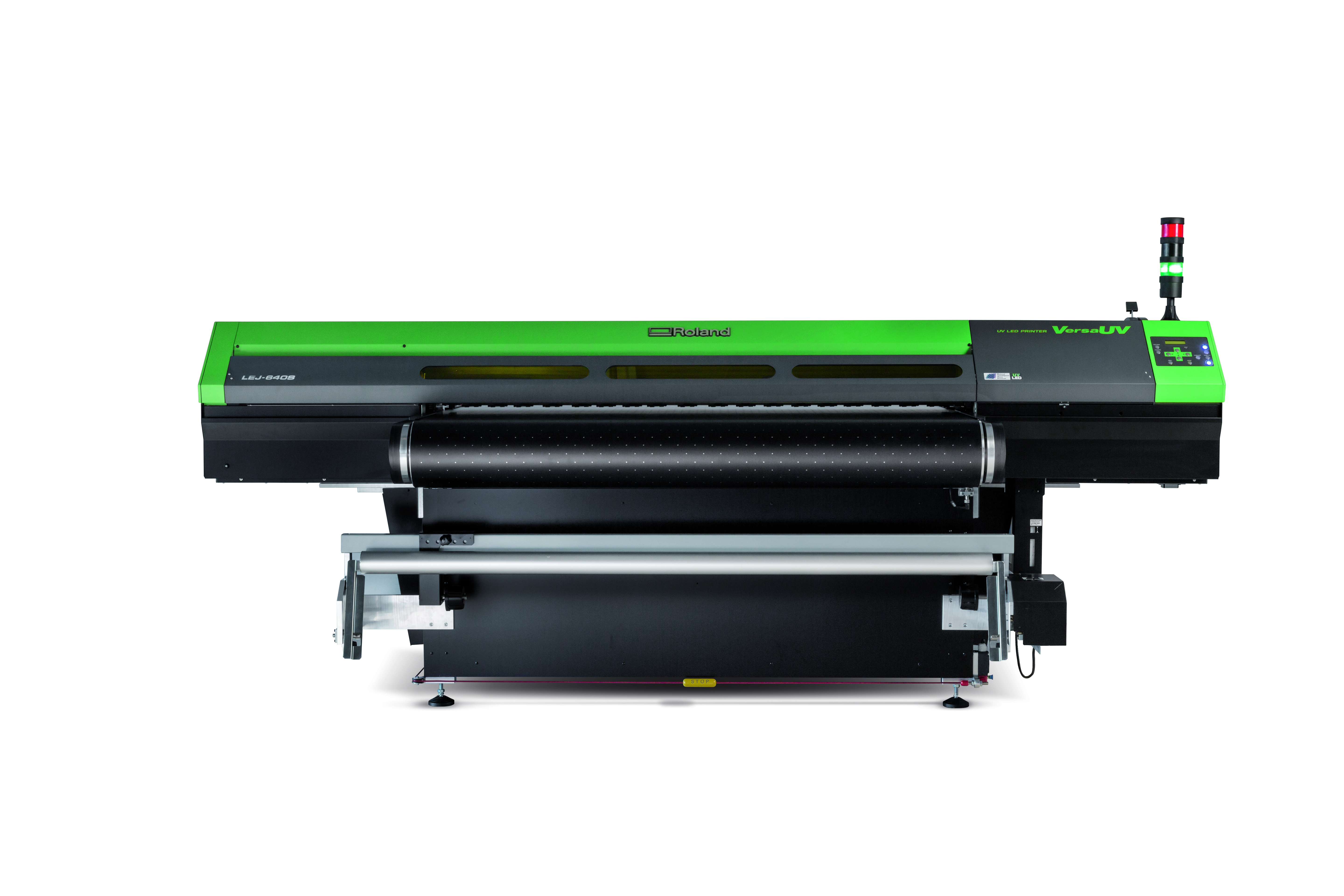

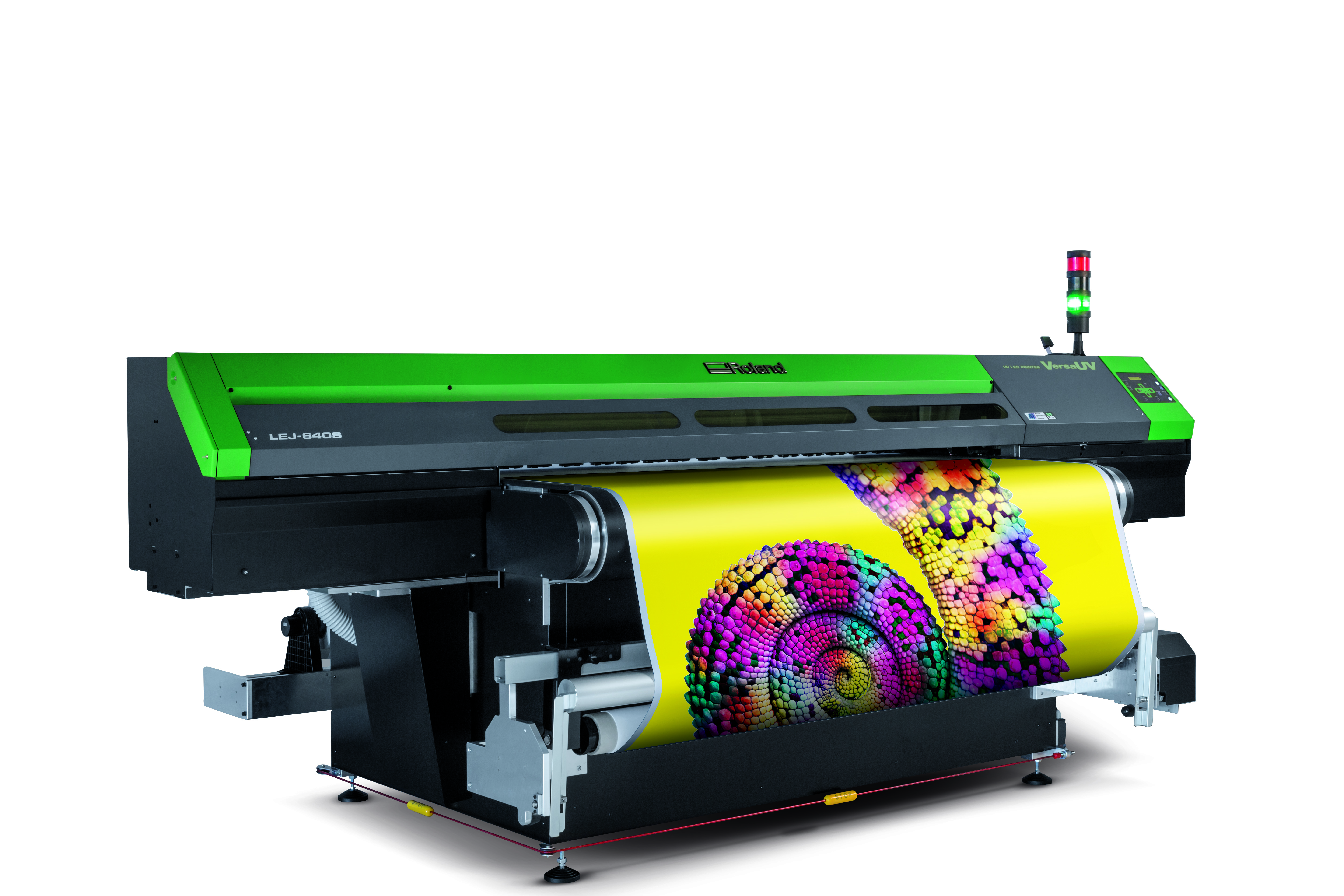

Rolands nya VersaUV S-serie är en unik bältesmatad UV printer med vacuumsug med bälten i två storlekat 150 cm eller 250 cm. Men med rullbordet som ingår till LEJ-640 plus möjligheten att printa rulle till rulle eller t.ex. skivmaterial upp till 200 mm tjocka måste detta vara en av marknadens mest mångsidiga UV-printrar i prisklassen. Rolands UV printrar konfigureras med CMYK plus White och Gloss som ger möjligheten att bygga lager av lack för otroliga dome effekter eller t.o.m. blindskrift.

Bara fantasin sätter gränsen.

Model		LEC-330S-B150	LEJ-640S-B150	LEJ-640S-B250
Printing method		Piezo ink-jet
Acceptable media	Width	760 mm	1625 mm	1625 mm
	Thickness/height	0.01 to 200 mm
	Weight Roll	Max. 20 kg	Max. 40 kg	Max. 40 kg
	Weight belt	100 kg/sqm
	Roll outer diameter	Max. 180 mm	Max. 210 mm	Max. 210 mm
	Core Diameter	50.8 mm or 76.2 mm
Belt Area		760 (W) x 1470 (D) mm	1625 (W) x 1470 (D) mm	1625 (W) x 2470 (D) mm
Printing Size		736 (W) x Continuous (L) x 200 (H) mm	1615 (W) x Continuous (L) x 200 (H) mm	1615 (W) x Continuous (L) x 200 (H) mm
Ink cartridges	Type	Roland ECO-UV or ECO-UV S ink
	Colours	Cyan, Magenta, Yellow, Black, White, Gloss*1
Ink configurations		CMYKGlWh /CMYKGlGl /CMYKWhWh
Vacuum System	Fan	1.5 kw (2 Phase) with silencer
	Partitions	1
Printing resolution (dots per inch)		Max. 1440 dpi
Movement method		High resolution stepping motor
Distance accuracy *2		Error of less than ±0.3% of distance travelled, or ±0.3 mm, whichever is greater
Horizontal repeat accuracy *3		±0,01mm
Output modes		Continuous, unload, return to origin, layered
Media height setting		Manual, auto sensor
Surface control		Manual, auto sensor
Media take-up System	Roll outer diameter allowing take-up	Max. 180 mm	Max. 210 mm	Max. 210 mm
	Weight allowing take-up	Max. 20 kg	Max. 40 kg	Max. 40 kg
Control Interface		7" Colour LCD touch screen
Interface		Ethernet Base 10/100
Power saving function		Automatic sleep feature
Power requirements		230V 16A 2P+E
Power consumption	Print with vacuum	Max. 2000 W
	Sleep mode	150 W
Acoustic noise level	Print with vacuum	<70 db
	During standby	<40 db
Dimensions	Printer unit	2192 (W) x 1600 (D) x 1780 (H) mm	3160 (W) x 1600 (D) x 1780 (H) mm	3160(W) x 2600 (D) x 1780 (H) mm
	Control tower	530 (W) x 530 (D) x 1080 (H) mm	530(W) x 530 (D) x 1080 (H) mm	530(W) x 530 (D) x 1080 (H) mm
	Table	1035 (W) x 1010 (D) x 860 (H) mm	1670 (W) x 1010 (D) x 860 (H) mm	1670 (W) x 1010 (D) x 860 (H) mm
Weight		450 kg	650 kg	850 kg
Weight distribution		4 points (80 mm diameter)	4 points (80 mm diameter)	6 points (80 mm diameter)
Environment	Power on	Temperature: 20 to 32ºC (68 to 90ºF) (22ºC [72ËšF] or more recommended). Relative humidity: 35 to 80% (no condensation).
	Power off	Temperature: 5 to 40ËšC (41 to 104ËšF). Relative humidity: 20 to 80% (no condensation).
Included items		RIP software, media table, users manual, power cable, cleaning kit, installation toolbox, etc.
Shipping Dimensions		2300 (W) x 1610 (D) x 1870 (H) mm	3300 (W) x 2020 (D) x 1870 (H) mm	3300 (W) x 2020 (D) x 1870 (H) mm
Shipping Weight		550 kg (Pallet 100 kg)	800 kg (Pallet 150 kg)	1000 kg (Pallet 150 kg)

*1 ECO-UVS ink in CMYKW
*2 With Roland PET film, print travel: 1 m. Temperature: 25°C (77°F),relative humidity: 50%
*3 The following conditions must be met: Media type: Media specified by Roland DG Corp. Side margins: 25 mm or more for both the left and right margins. Front margin: 35 mm or more. Excluding expansion/contraction of the media. Range for assured repetition accuracy length 3000 mm. Specifications, designs and dimensions listed may be subject to change without notice.

Software	Roland VersaWorks Dual	Roland PrintStudio by Caldera
Operating System	Windows 10, 8.1, 7 (32-bit edition/64-bit edition)*	Mac OS 10.9 and above
Processor	Dual Core 2.0 GHz or faster	Dual Core 2.0 GHz or faster
RAM	2 GB or more	Minimum 1GB per core, recommended 2 GB per core
Video card and monitor	1280x1024 or higher resolution is recommended	1280x1024 or higher resolution is recommended
Hard disk space	40 GB or more recommended	250 GB recommended
File System	NTFS file system	N/A
Optical Drive	DVD-ROM	N/A
Other requirements	Ethernet connection for network capable printers	Ethernet connection for network capable printers
Other requirements	Broadband Internet connection and web browser for Roland@NET online update service	Broadband Internet connection and web browser for online update service

* Roland VersaWorks Dual is a 32-bit application and therefore runs in WOW64 (Windows-On-Windows 64) when running on a 64-bit versions of Windows operating systems.
